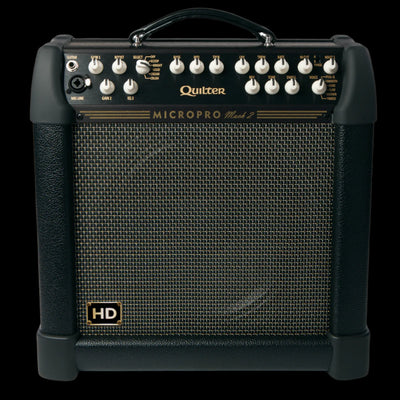

Quilter Labs Mach 2 HD Amplifier - Facing Forward

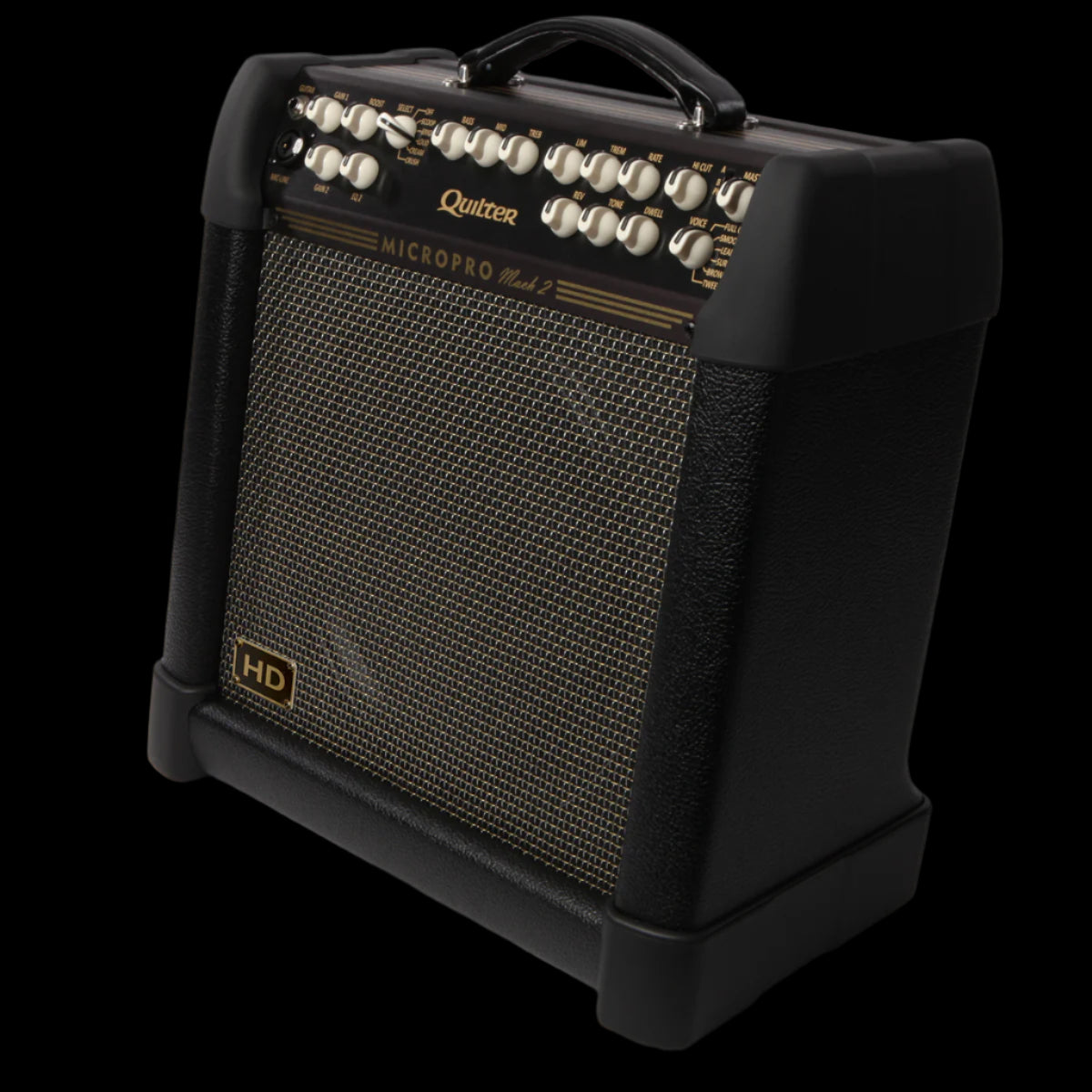

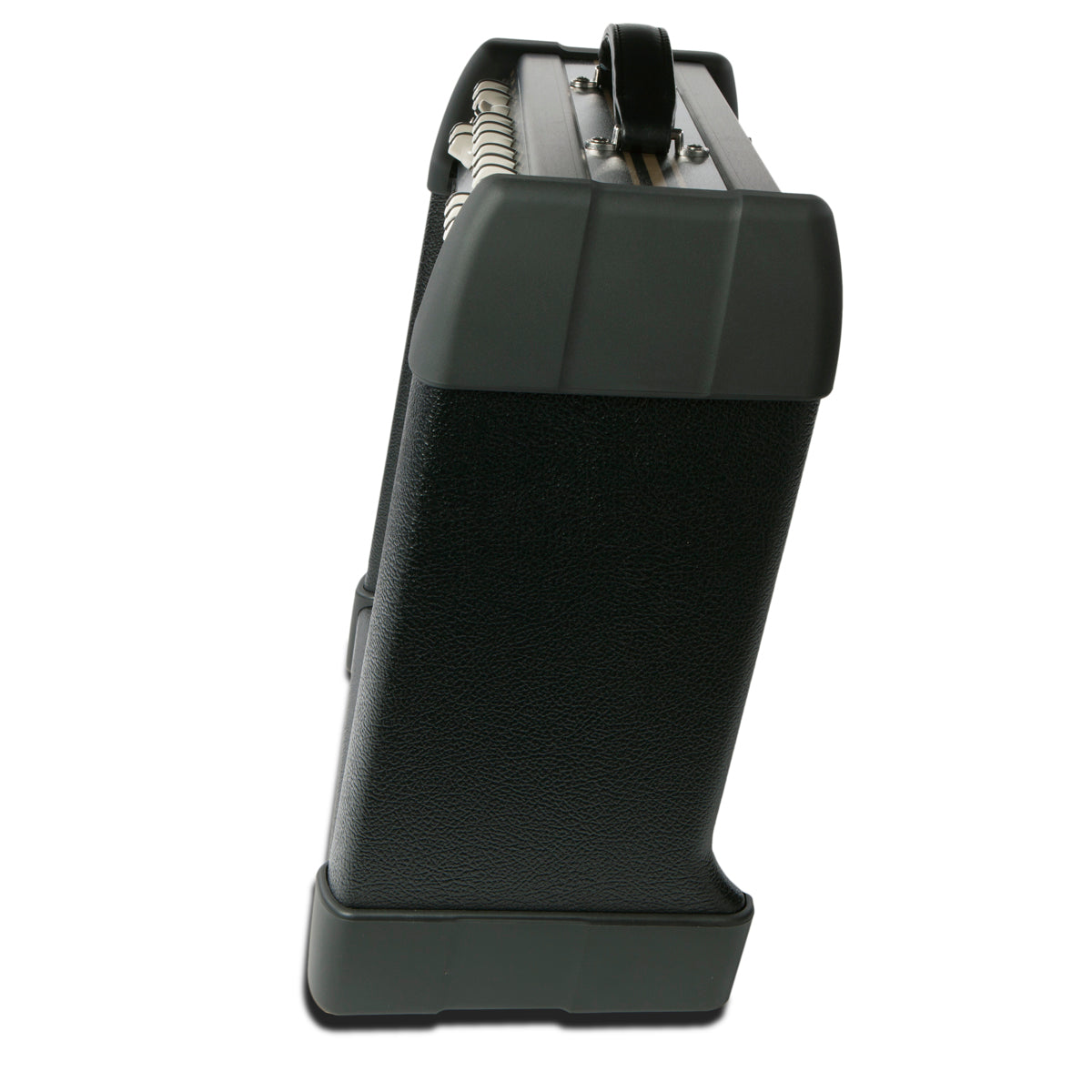

Quilter Labs Mach 2 HD Amplifier - Facing Left
Quilter Labs Mach 2 HD Amplifier - Facing Left

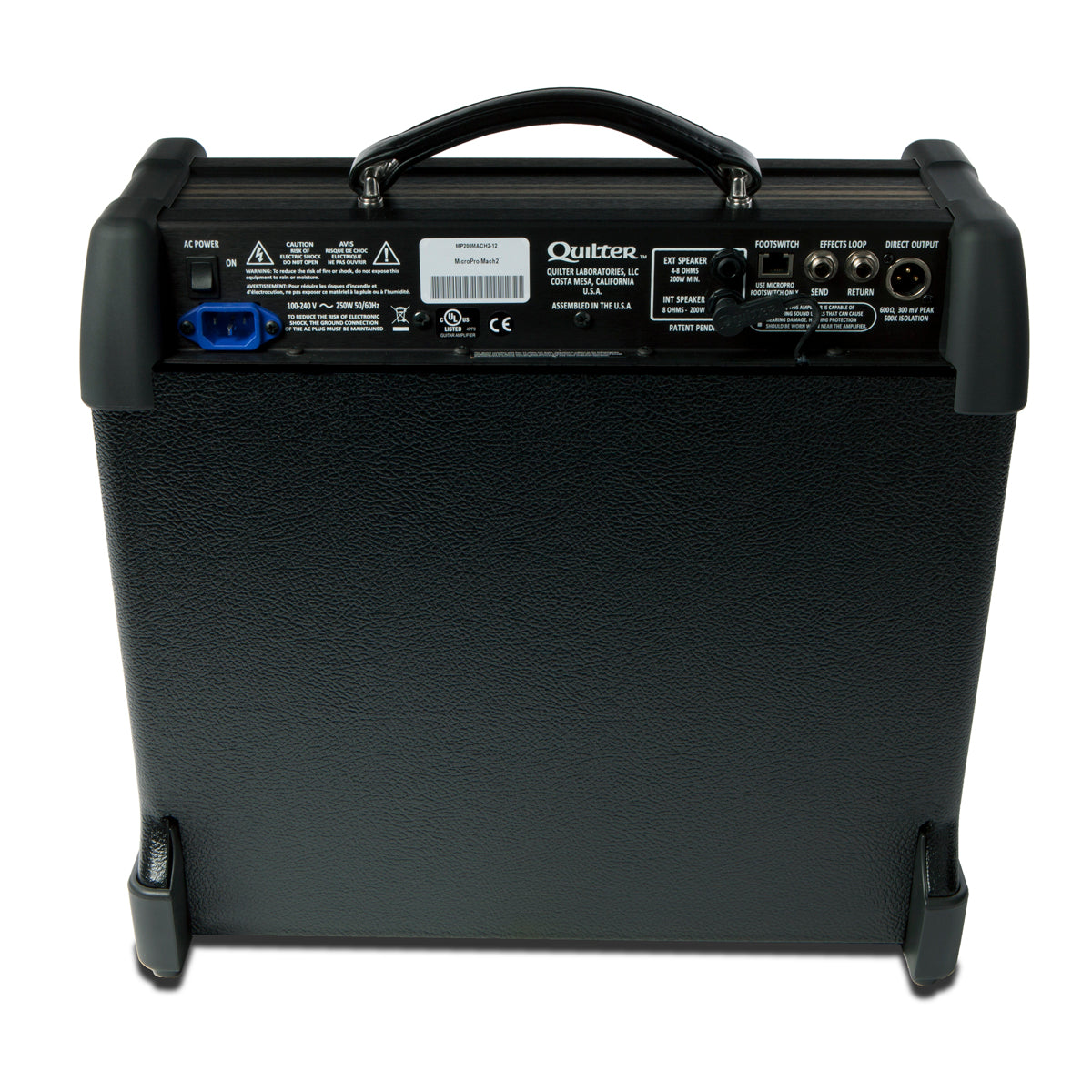

Quilter Labs Mach 2 HD Amplifier - Facing Back

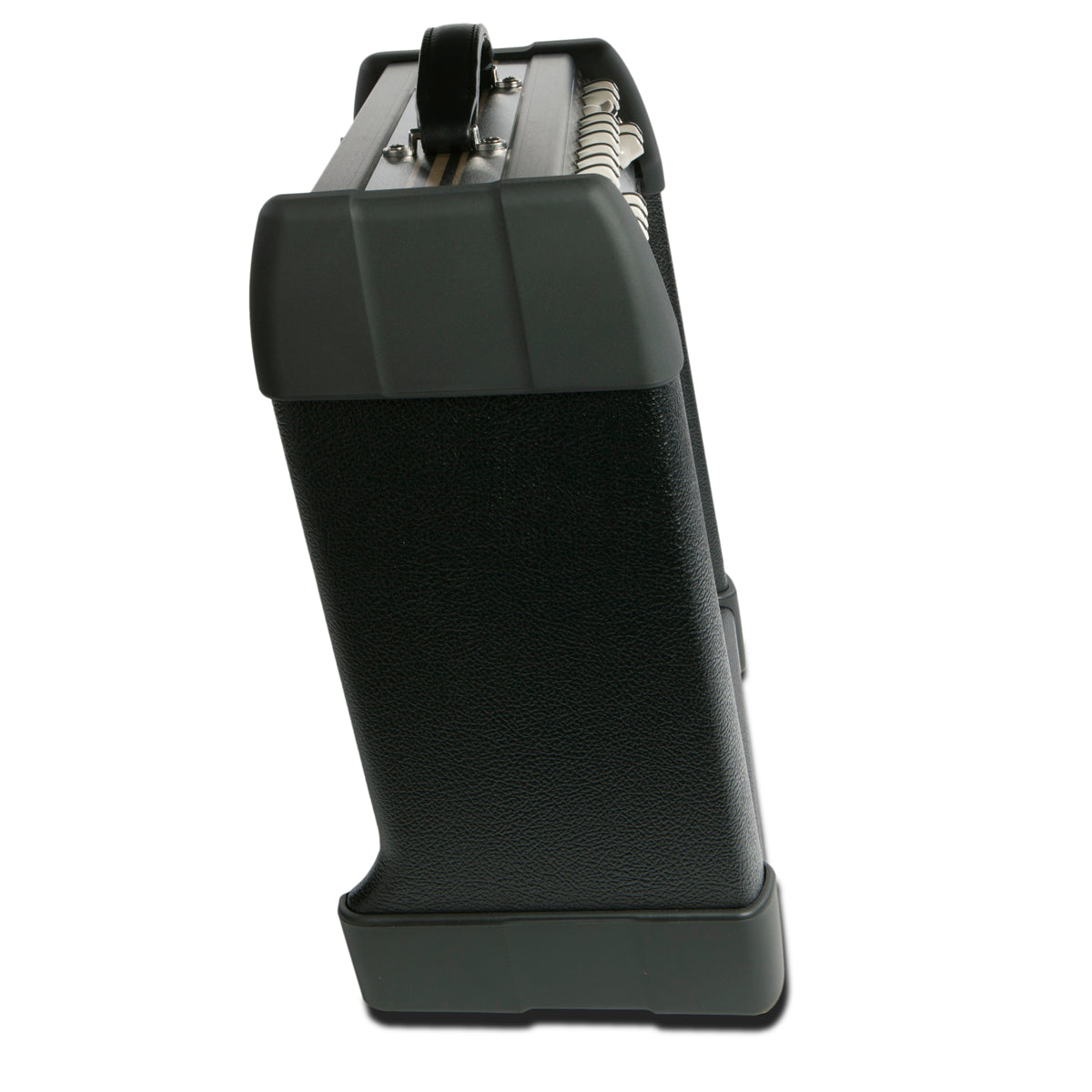

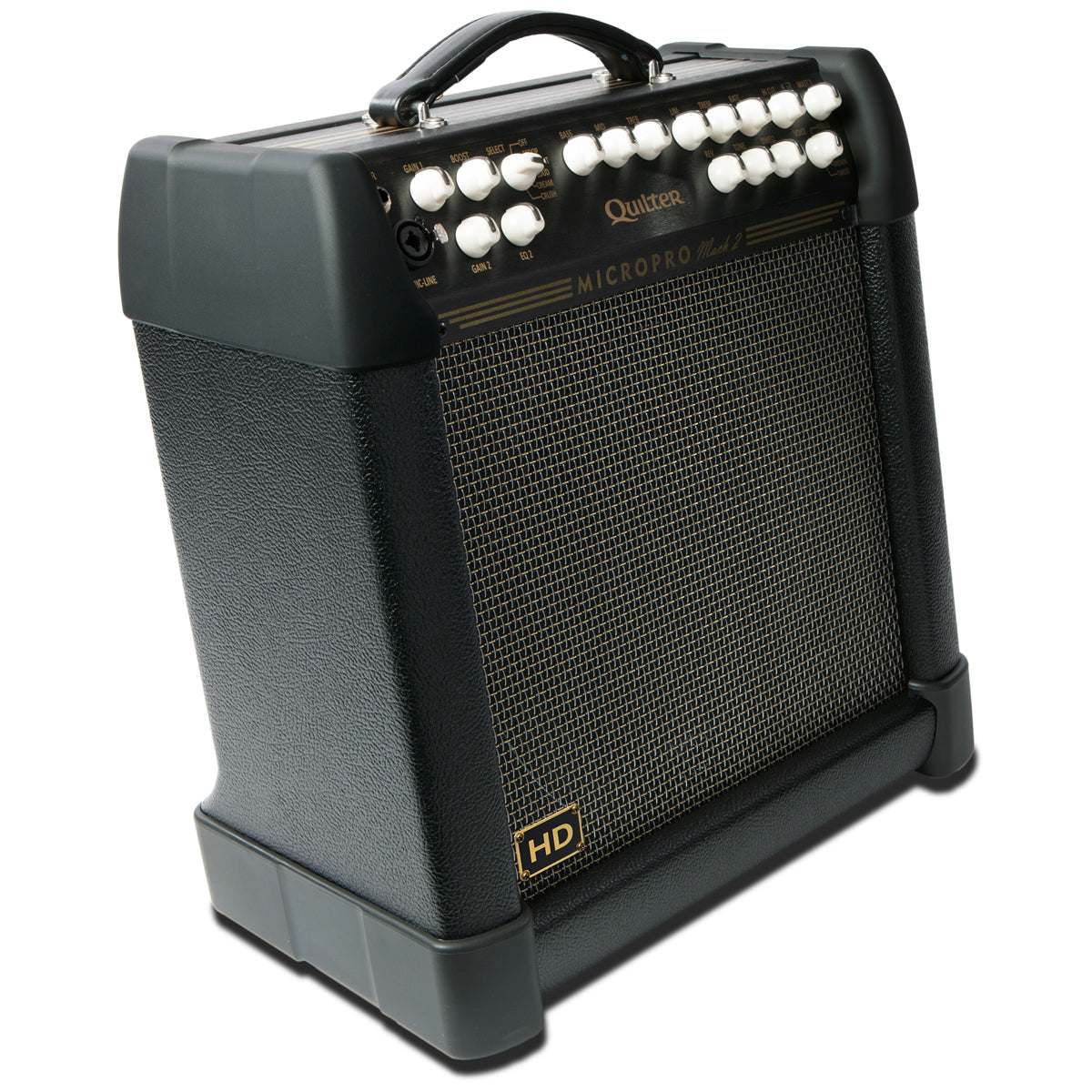

Quilter Labs Mach 2 HD Amplifier - Facing Right
Quilter Labs Mach 2 HD Amplifier - Facing Right

Mach 2 Combo 12HD

Regular price$1,399.00
/

The ultimate amp for serious headroom in a small package, the HD-12 combo uses yet another Quilter driver cherry-picked from the pro-audio catalog. The Celestion BN12-300s sports a neo magnet and larger voice coil with a 300 watt rating, and provides a cleaner, wider range response than the alternative Classic Lead 80. Combined with its lighter weight, it's perfect for the the jazz or blues player or anyone who loves an EVM-12L type speaker response.

The powerful magnet, cloth suspension, and parabolic cone provide deeper bass and smoother mids, with well controlled highs that wake up when pushed with overdrive. Great for electric and especially hollow body instruments, the HD-12 combo packs a serious punch for players who want to fill the stage with a combo that only weighs 21 pounds. Plays well by itself, or when stacked on the MicroPro Extension Cab.


Specifications

Power Output

Channel 1: 100 W RMS

Channel 2: 100 W RMS

Total: 200 W RMS

AC Power req.
100-240V, 50-60 Hz, 250 W
Input Connections MIC/LINE: Balanced XLR and 1/4" TRS

INST: 1/4" mono
Input Impedance:
MIC:4K ohms

LINE: 70K ohms

GUITAR: 2M ohms
Effects Loop
Output: 1/4" mono, -10dB, 1K ohms

Input: 1/4" mono, 50K ohms
Speaker 1 Output
8 ohms, 200 W minimum rating
Speaker 2 Output
4-8 ohms, 200 W minimum raiting
Speaker:
Celestion BN12-300S - 12" cone, 2.5" voicie coil, 8ohms, Neodymium
Dimensions
19" H x 17.5"W x 10" D

48.3 cm x 44.5 cm x 25.4 cm
Weight
21 lbs. (9.5 Kg)

Download the manual here
Checkout our current Combo lineup here
