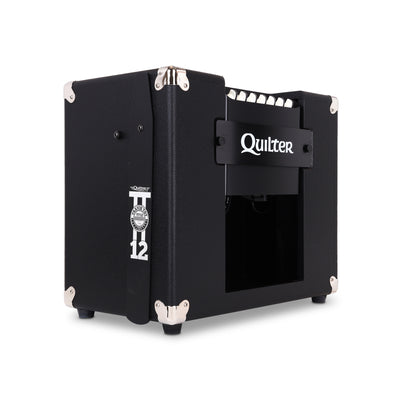

Travis Toy 12" Signature Edition Steel Guitar Amplifier

The Travis Toy 12 is the ultimate 12 inch steel guitar amplifier modular combo. It is powered by a removable Tone Block 202 head for isolation room work, and featuring tilt back legs for live stage use. Developed in conjunction with Quilter and Eminence, it represents the culmination of Travis' lifetime effort to build a legacy of great tone, honest value, and effortless performance for the Steel Guitarist.

The Travis Toy 12, utilizes the custom signature Eminence Double-T 12 speaker and is intended to be the best possible amplification system for today's modern steel guitarist. Features include laser engraved tilt back legs, a signature Double T 12 speaker, a pre-configured and tested Tone Block 202 and a custom artist badge.

• Features
  • ToneBlock 202 Amplification
  • Custom Eminence Double T 12 Speaker
  • Custom Artist Badge
  • Tilt Back Legs
• Controls
  • Primary Controls
  • GAIN adjusts the distortion from clean to overdrive.
  • LIMITER reduces gain just enough to prevent overdrive, and then restores gain as the note dies away.
  • 3-BAND ACTIVE EQ Boosts and cuts Bass, Mids, and Treble frequencies.
  • Effects Controls
  • EFFECTS LOOP send and return jacks.
  • REVERB
  • 3 VOICE SWITCH
  • Volume Controls
  • MASTER adjusts speaker power volume level. (0-200 watts)
• Specifications
  Electronic Performance

  Input	¼” Mono, 2 meg impedance
  FX Loop	1V full scale, 1K Send impedance, 47K Return impedance.
  SIG OUT(Front)	TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master.
  Direct Out (Rear)	XLR-M, 300mv full scale, balanced, ground lifted, 10K min
  HEADPHONE (SIG OUT)	¼” TRS, 40 ohms each channel, 0-6Vpk (depending on SIG VOL)

  Power

  Power Amplification	Tone Block 202
  AC Power Required	100-240Vac, 50-60Hz, 250W max.
  Power Output	0-200 watts, 4-8 ohms
  Speaker 1 Output:	8 ohms, 200 W minimum recommended rating
  Speaker 2 Output:	4 ohms, 200 W minimum recommended rating
  AC Power	100-240Vac, 50-60Hz, 250W max
  Speaker	Eminence Travis Toy Double T 12

  Included Accessories


  	Aluminum Amplifier Retention Plate
  	Laser Engraved Travis Toy 12 Tiltback legs pre-installed
  	4mm Ballistic Nylon Cover w/Carry pouch on rear
  	Right Angle Speaker Cable
  	Travis Toy Artist Series Official Product Badge


  Dimensions


  Combo HxWxD	H 16 inches (40.64 cm) x W 18.25 inches (47 cm) x D 10.75 inches (27.3 cm)
  Weight (Combo)	27 lbs (12.25kg)
  Weight (Shipping)	32 lbs (14.5 kg)




• Resources
  • The manual contains detailed info for setup and technical specs.
